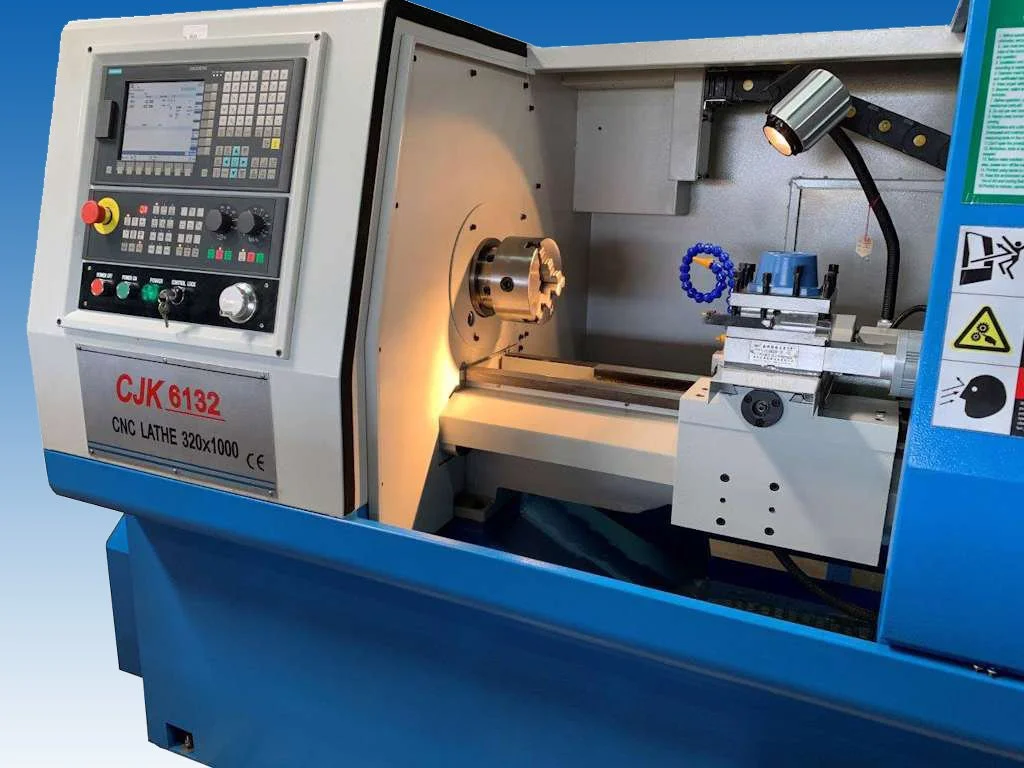

New CJK6132 2-Axis CNC Turning Centre - Flat Bed


New CJK6132 2-Axis CNC Turning Centre - Flat Bed

ZAR 273,100.00

Specifications:
Distance between centers: 1000mm
Max swing Ø over bed: 320mm
Max swing Ø over saddle: 150mm
Spindle taper: MT5
Max Ø of spindle bore: 38mm
Spindle speed range: 100-2500rpm
Travel of crosslide: 160mm
Feed motor torque (X/Z): 6NM/12NM
X rapid traverse: 5m/min
Z rapid traverse: 10/min
Electric toolpost: 4 station
Taper of tailstock: MT3
Barel travel of tailstock: 160mm
Power of main motor: 2.2kW
Dimensions: 2300 x 1100 x 1650 (LxWxH)
Weight: 950kg

Standard Accessories:
160mm 3 -Jaw Chuck and Tool Post Wrench
Electrical Toolpost (4 Station)
Cooling System
Automatic Lubricating system
Working Lamp
Siemens 808D CNC Control
Induction Hardened Bed-Way
Sheetmetal base

Optional Accessories:
6 -Station Electric Toolpost
Pneumatic Chuck
Hydraulic Chuck

Add To Cart

More information on our new CNC Milling Machine Centre available for sale, is listed below:

Standard Accessories

  • Coolant System
  • Working Lamp
  • Automatic Lubricating System
  • Siemens 808D CNC Control
  • Sheetmetal base

Optional Accessories

  • Pneumatic Tool Release and Clamp
  • Cast iron base

Technical details:

  • Feeding Motor Power: X-Axis: 1 kW
  • Y-Axis: 1 kW
  • Z-Axis: 1 kW
  • Rapid Feeding Speed: X, Y, Z Axis: 6 m/min
  • Feeding Speed: 0-2000 mm/min
  • Min Set Unit: 0,01 mm
  • Max Size of Tool: Ø 60 x 175 mm
  • Tool Clamp Mechanism: Quick Clamp Handle (BT30 Tooling)
  • Max Tool Weight: 3.5 Kg
  • Machine Weight: 735 Kg
  • Dimensions: 1220 x 1380 x 1650 mm
