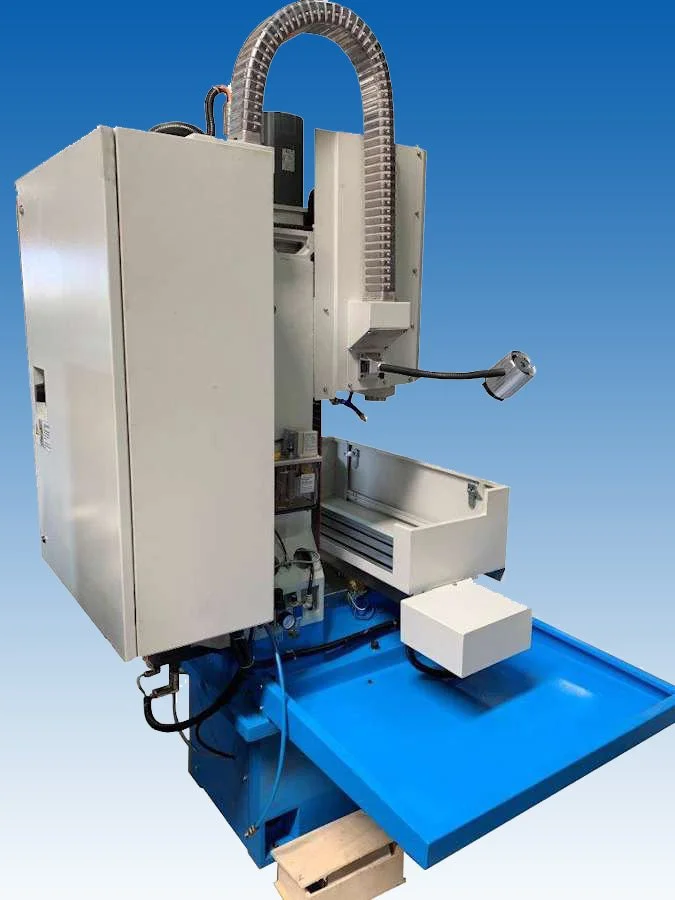

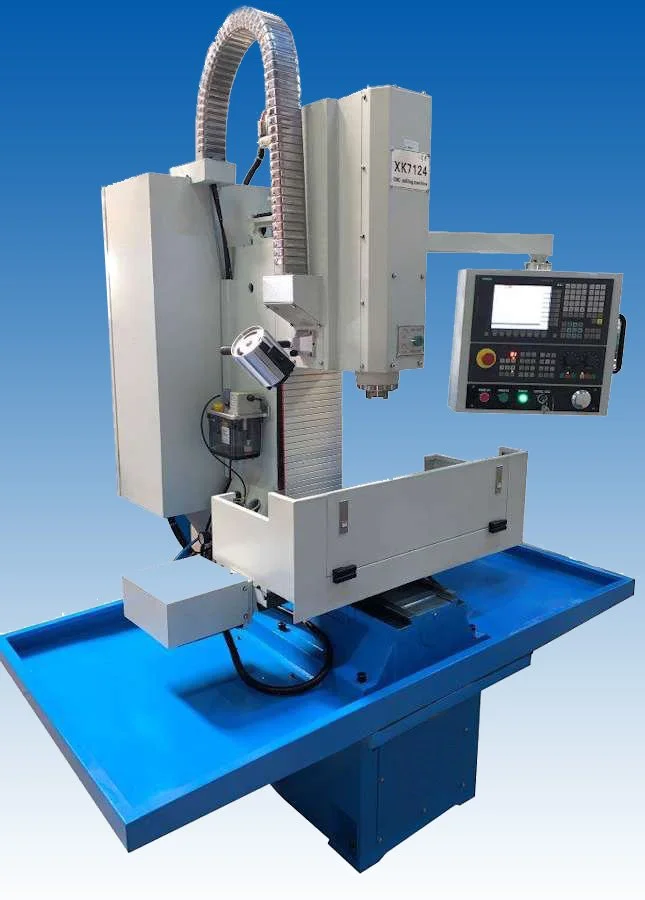

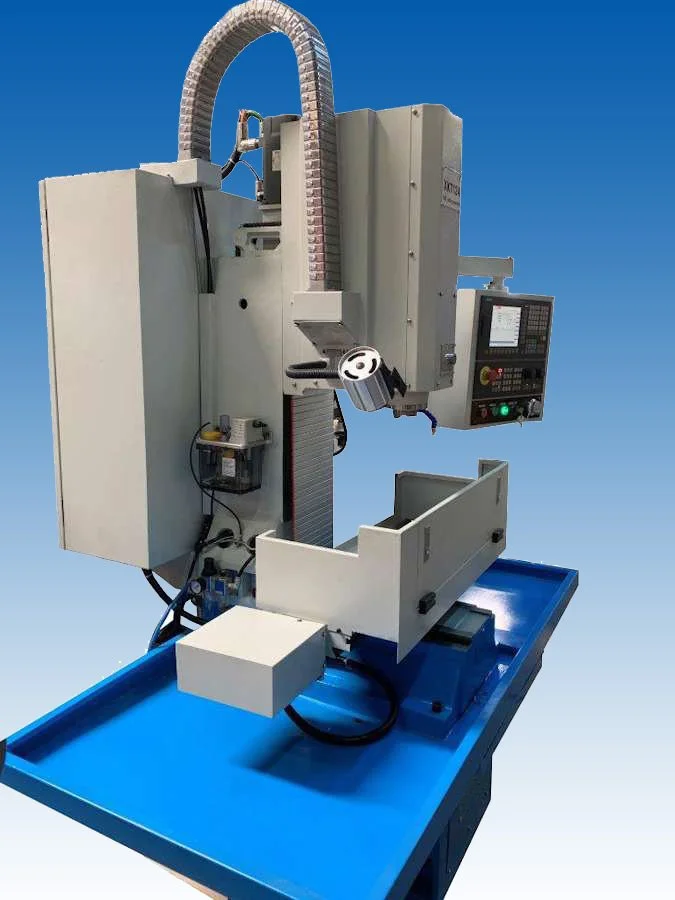

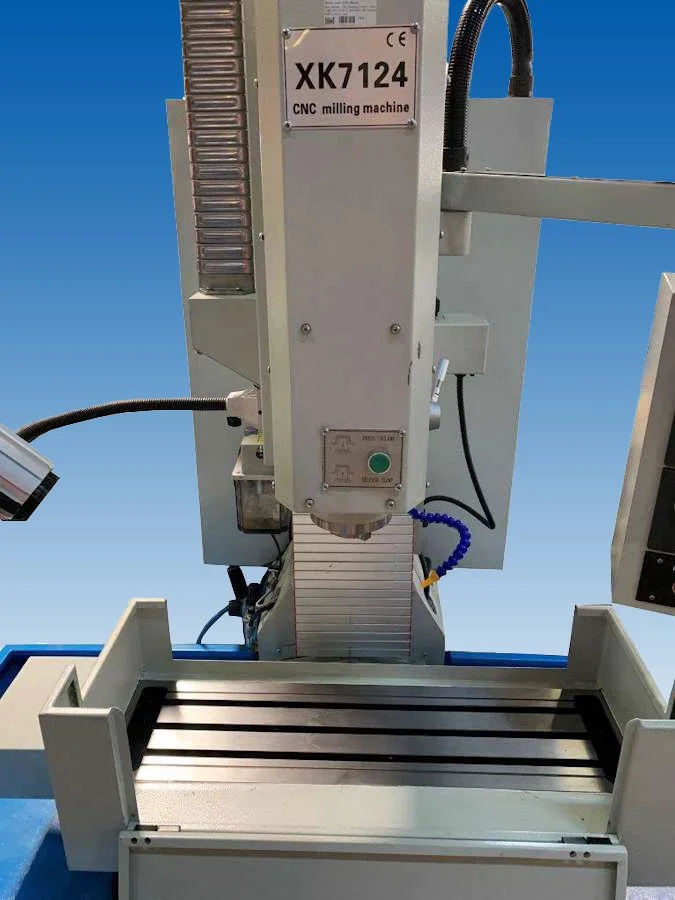

New XK7124B Vertical CNC Machining Centre 3-Axis
New XK7124B Vertical CNC Machining Centre 3-Axis
Technical Specifications:
Size of Work table: 900 x 240 mm
T Slot: 16 mm x 3 pc x 60 mm
Max Weight: 60 Kg
X-Axis Travel: 530 mm
Y-Axis Travel: 280 mm
Z-Axis Travel: 400 mm
Distance Between Spindle Nose and Table: 50-450/50-550 mm
Distance Between Spindle center and Column: 297 mm
Spindle Taper: BT30
Steel - 20mm
Castings -25mm
Max Spindle Speed: 100-6000 r/min
Spindle Motor Power: 2.2 kW
Feed Motor Power: X, Y, Z Axis: 1/1/1.5
Rapid Feeding Speed: X, Y, Z Axis: 6 m/min
Feeding Speed: 0-2000 mm/min
Min Set Unit: 0,01 mm
Max Size of Tool: Ø 60 x 175 mm
Max Tool Weight: 3.5 Kg
Machine Weight: 1000 Kg
Dimensions: 1640 x 1205 x 1950 mm
Standard Accessories:
Coolant System
Working Lamp
Automatic Lubricating System
Siemens 808D CNC Control
Sheetmetal base
Pneumatic Tool Release Clamp

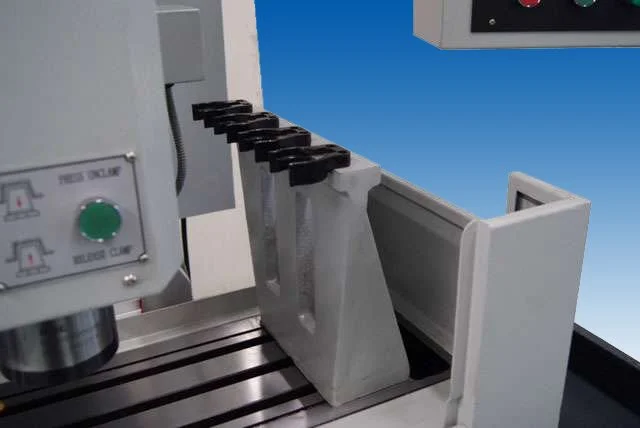

4 Positioning ATC
Servo Drive
More information on our new CNC Milling Machine Centre available for sale, is listed below:
Standard Accessories
- Coolant System
- Working Lamp
- Automatic Lubricating System
- Siemens 808D CNC Control
- Sheetmetal base
Optional Accessories
- Pneumatic Tool Release and Clamp
- Cast iron base
Technical details:
- Feeding Motor Power: X-Axis: 1 kW
- Y-Axis: 1 kW
- Z-Axis: 1 kW
- Rapid Feeding Speed: X, Y, Z Axis: 6 m/min
- Feeding Speed: 0-2000 mm/min
- Min Set Unit: 0,01 mm
- Max Size of Tool: Ø 60 x 175 mm
- Tool Clamp Mechanism: Quick Clamp Handle (BT30 Tooling)
- Max Tool Weight: 3.5 Kg
- Machine Weight: 735 Kg
- Dimensions: 1220 x 1380 x 1650 mm
