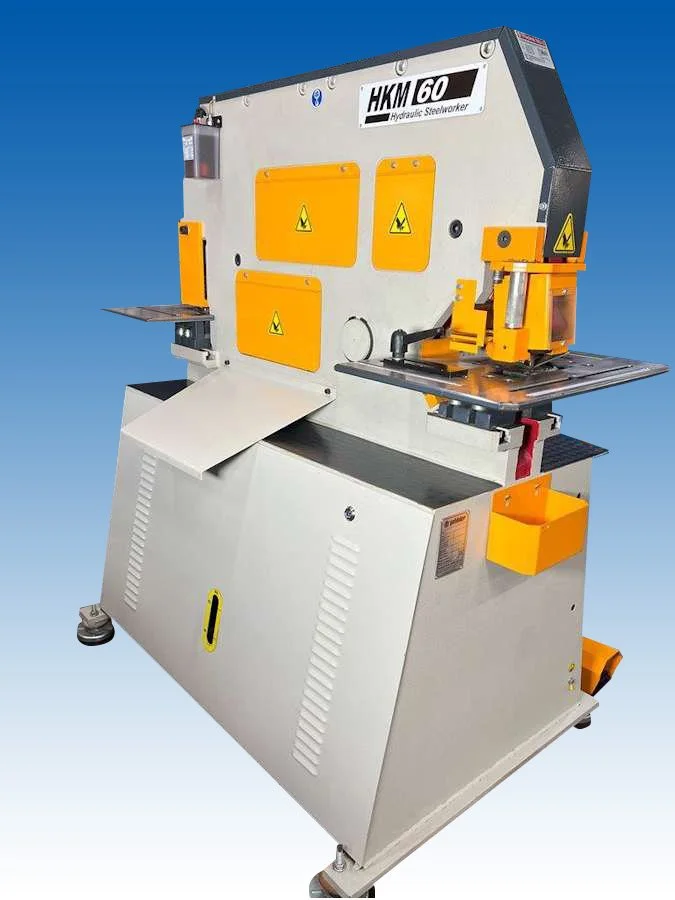

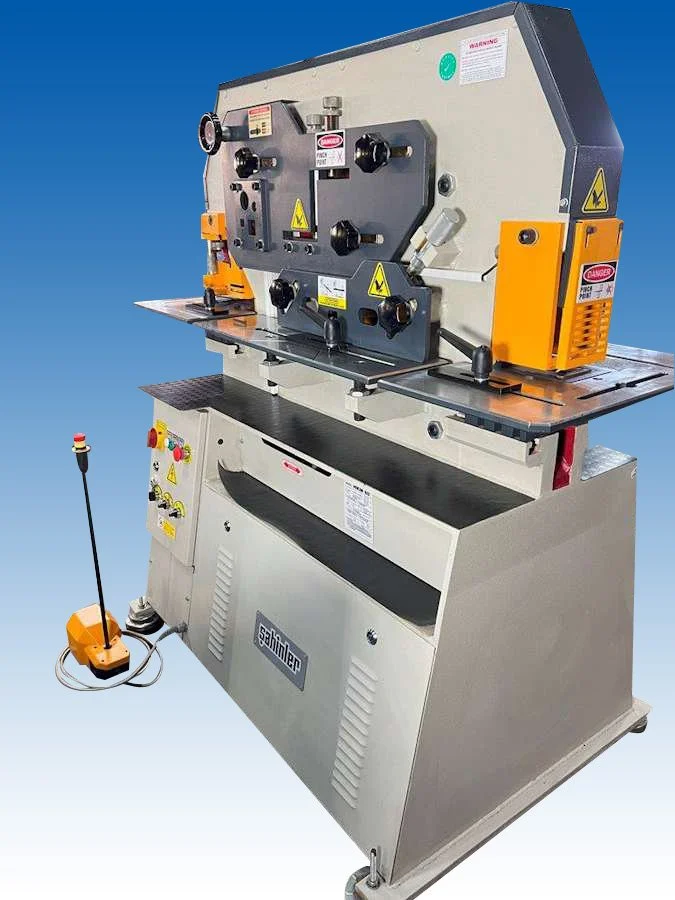

Used Sahinler HKM 60 Hydraulic Cropper
Used Sahinler HKM 60 Hydraulic Cropper
More information on our Used Sahinler HKM 60 Hydraulic Cropper available for sale, is listed below:
Technical Data
One piston, 5 workstations
Motor Power: 4 kW
Weight: 1440 Kg
Machine Dimentions: 1520 x 950 x 1780 mm
Power (Pressure): 60 Ton
Punching
Diameter x Maximum Thickness: Ø28 x 15 mm
Diameter x Thickness: Ø38 x 11 mm
Maximum Diameter: Ø110 x 3 mm
Stroke: 55mm
Stroke Count in (20 mm): x 25
Throat Depth: 175 mm
Working Height: 955 mm
Steel bar shear
Round: Ø 40 mm
Square: 35 mm
Angle Shear
Angle Section (90ᵒ): 120 x 120 x 12 mm
Angle Section (45ᵒ): 80 x 8 mm
Working Height: 1155 mm
Sheet Metal Shear
Sheet Metal: 200 x 20 mm
Sheet Metal: 300 x 15 mm
Blade Length: 317 mm
Shearing With Angle: 80 x 10 mm
Working Height: 955mm
Notching
Thickness: 10mm
Width: 42mm
Depth: 100mm
Working Height: 955 mm
Standard Accessories
More productivity with adjustable piston stroke distance
Central Lubrication System
Four individual working stations on machine:
- 22 mm Ø punch and die and standard punching tools
- Steel solid round and square bar cutting blade set
- Angle cutting blade set
- Sheet metal cutting shear
- U-Notching blade set
