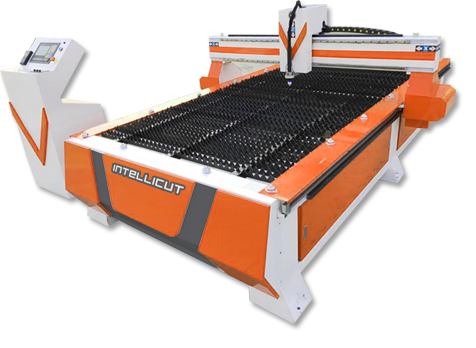

New IntelliCut Excel Series CNC Plasma
New IntelliCut Excel Series CNC Plasma
Bed Size (Working Area): 1500x3000mm / 2000x4000mm - Made to any size.
Free Standing Rigid Bed Design.
Light to Heavy duty cutting with 100% duty cycle.
Precision motion with Servo Motors as standard.
Water Bed.
Touch screen CNC Controller with operating software.
Arc Voltage Torch Height Control with electronic plate sensing.
Standard to advance nesting program.
Low maintenance cost.
More information on our New IntelliCut Excel Series CNC Plasma Table, is listed below:
Standard features:
Plasma Bed: Waterbed for minimal smoke pollution and heat deformation
Controls: Starfire Controller / Hypertherm Edge Connect
Motors: Servo Motors as standard
THC: Arc Voltage Torch Height Control with electronic plate sensing / ArcGlide Technology THC with Ohmic and Stall Force Plate Sensing
Motion: High Accuracy
Duty Cycle: High
Safety: E-Stop; obstacle detection Magnetic torch break away with safety cut-off feature, X & Y Limit Switches
Advantages:
Robust heavy duty machine
Fully customisable to client requirements
More than 80mm plate carrying capacity
Compact footprint
Highly Efficient
Quick installation & Commissioning
Ease of Operation
Environmentally friendly - Low Carbon footprint
Rigid Lightweight heavy duty Gantry – Utilize optimum cutting speeds
Reliable, powerful and can be used for manual cutting & CNC cutting:
Powerful Output:
75Amps @ 60%, at 40℃ (104℉), with a cutting capacity up to 16mm (manual) and 8mm (CNC dross-free).
High output voltage-145VDC ensures a long plasma arc length.
Light weight:
Portability-small size and light weight allow for easy mounting in any application.
Maximum productivity:
Finish jobs faster with cut speeds two and three times greater than other traditional cutting process.
Superior cut performance-Significantly save a lot of time on secondary operations.
Long-life and reliability:
TOPWELL's long-life consumable-deliver operating cost that is less than half the competition.
TOPWELL certified reliability-ensures performance in the most demanding environment.
HD CNC Cutting from 1mm to 15mm mild steel
Application:
Home workshop
Metal workshops
Light fabrication
Repair and maintenance
Materials:
Mild Steel
Brass
Stainless Steel
Copper
Aluminum
Input Power: 340-460V, 3-Phase:
Amperage Range: 30-100A
Rated Output at 40℃ (104℉):
100A at @60% Duty Cycle
Weight: 42KG
Application:
Home workshop
Metal workshops
Light fabrication
Repair and maintenance
Materials:
Mild Steel
Brass
Stainless Steel
Copper
Aluminum
Input Power: 340-460V, 3-Phase:
Amperage Range: 30-130A
Rated Output at 40℃ (104℉):
130A at @60% Duty Cycle
Weight: 45KG
Professional-grade plasma cutting system for CNC up to 20mm:
Powerful Output:
Heavy duty-160A@100%, at 40℃(104℉), the cutting capacity is up to 45mm and CNC piercing 25mm.
High output voltage-200VDC ensures a long plasma arc length.
Specially designed torch:
Refined single-air system Torch-requires higher pressure and arc voltage, which shift the cutting limitation.
Maximum productivity:
Maximum productivity-Finish jobs faster with cut speeds two and three times greater than other traditional cutting process.
Superior cut performance-Significantly save a lot of time on secondary operations.
Long-life and reliability:
TOPWELL's long-life consumable-deliver operating cost that is less than half the competition.
TOPWELL certified reliability-ensures performance in the most demanding environment.
HD CNC Cutting from 1mm to 18mm mild steel
Application:
Home workshop
Metal workshops
Light fabrication
Repair and maintenance
Materials:
Mild Steel
Brass
Stainless Steel
Copper
Aluminum
Input Power: 340-460V, 3-Phase:
Amperage Range: 30-105A
Rated Output at 40℃ (104℉):
105A at @60% Duty Cycle
Weight: 45KG
HD CNC Cutting from 1mm to 15mm mild steel
Application:
Home workshop
Metal workshops
Light fabrication
Repair and maintenance
Materials:
Mild Steel
Brass
Stainless Steel
Copper
Aluminum
Input Power: 340-460V, 3-Phase:
Amperage Range: 30-125A
Rated Output at 40℃ (104℉):
125A at @60% Duty Cycle
Weight: 45KG
High definition, maximized productivity, long life consumables:
High-definition cutting:
HD200/200W cuts fine-feature parts with superior quality and consistency, eliminating the cost of secondary operations.
A focused plasma arc makes for more powerful and precise cutting up to 32mm on Mild Steel and 25mm on Stainless steel and Aluminum.
With water mist / spray cutting process, stainless steel and aluminum cutting will produce less warping of your left-over material and cut pieces.
Maximized productivity:
HD200/200W combines fast cutting speeds, rapid process cycling, quick changeovers and high reliability to maximize your productivity.
Dross free cutting speeds can reach 1000mm/min for 25mm mild steel
Minimized operating costs:
HD200/200W uses Air/Air for M.S cutting and Air/Water-spray for S.S/AL cutting, it significantly lowers operating cost and improves profitability.
High definition, maximized productivity, long life consumables:
High-definition cutting:
HD300/300W cuts fine-feature parts with superior quality and consistency, eliminating the cost of secondary operations.
A focused plasma arc makes for more powerful and precise cutting up to 40mm on Mild Steel and 32mm on Stainless steel and Aluminum.
With water mist / spray cutting process, stainless steel and aluminum cutting will produce less warping of your left-over material and cut pieces.
Maximized productivity:
HD300/300W combines fast cutting speeds, rapid process cycling, quick changeovers and high reliability to maximize your productivity.
Dross free cutting speeds can reach 1000mm/min for 35mm mild steel
Minimized operating costs:
HD300/300W uses Air/Air for M.S cutting and Air/Water-spray for S.S/AL cutting, it significantly lowers operating cost and improves profitability.
Meet the newest member of our best-selling line of Powermax® plasma systems. The Powermax45® XP delivers increased cut capacity, faster cutting speeds and automatic gas adjustment for quick, simple setup and operation.
The Powermax65® plasma system is a versatile machine for heavy-duty cutting and gouging in demanding environments. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.
The Powermax85® has the same features and options as the Powermax65®, but with more power from an output current of 85 amps. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.
The Powermax105® plasma system has the duty cycle and performance needed for tough industrial cutting and gouging jobs. Delivering superior cut capabilities thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.
Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm mechanized pierce capability, and fast gouging metal removal.
The MAXPRO200® LongLife® plasma cutting system is engineered for heavy-duty, high capacity automated and handheld cutting and gouging applications. The easy-to-use system operates with either air, oxygen, or nitrogen plasma gas, and combines fast cutting speeds and quick process changes to maximize productivity.
Powerful Output:
40Amps @ 60%, at 40℃ (104℉), with a cutting capacity up to 16mm (manual) and 8mm (CNC dross-free).
High output voltage-145VDC ensures a long plasma arc length.
Light weight:
Portability-small size and light weight allow for easy mounting in any application.
Maximum productivity:
Finish jobs faster with cut speeds two and three times greater than other traditional cutting process.
Superior cut performance-Significantly save a lot of time on secondary operations.
Long-life and reliability:
TOPWELL's long-life consumable-deliver operating cost that is less than half the competition.
TOPWELL certified reliability-ensures performance in the most demanding environment.
